Full Automatic Toilet & Towel Rolling Paper – Rewinding & Perforating Machine - AM 215





Features:



  * AC motor speed control.

  * Lamination unit (Pneumatic System) - Forward, Backward  (Glue ply bonding).

  * Automatic Core Feeding.

  * Siemens PLC, Touch Screen Control System.

  * Paper Tear Sensor.

  * Adjustable perforating 90 - 125 mm. & 180 - 250 mm.

  * 2 fixed perforation blades: 1 for hand towels & 1 for Toilet Paper.

  * Double embossing selection (point to point).

  * Point to point pattern adjustment.

  * Automatic transfer of finished log by conveyor belt.

  * Roll opening unit synchronized with main motor + tension control.

  * Movement transmission by timing tension rubber belts.

  * Pneumatic Jumbo Roll lifting.



  Optional:

  * DECO Printing & Embossing System.

  * 2 or 3 plies + 3 Jumbo Roll Unwind Stand.


Technical Features:



  * Production Speed: 150 - 180 m/min.

  * Different production design up to 375 m. /min.

  * Core tank Storage: 80 - 100 Pcs.

  * Usable Paper Width: max. 1320 mm., or 2650 mm. as  customer request.

  * Jumbo roll core diameter: 76 mm., 3 inches.

  * Jumbo roll diameter: 1150 mm.

  * Main Motor: AC 7.5 KW, depending on machine width.

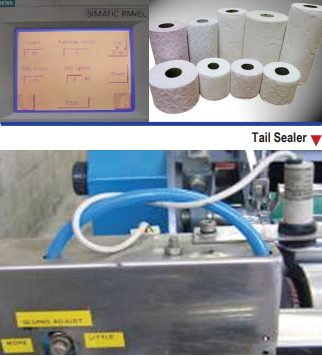

  • Tail sealer motor: 0.75 KW.

  * Log Rewinding diameter: max. 150 mm.

  * Core Diameter: 35 - 55 mm.

  * Tail Sealer glue tank capacity: 15 Lt.

  * All Electric appliance of Siemens or international Brand.



  Optional:

  * Printing Units.

  * Second embossing model.

  * Edge Embossing Unit..
