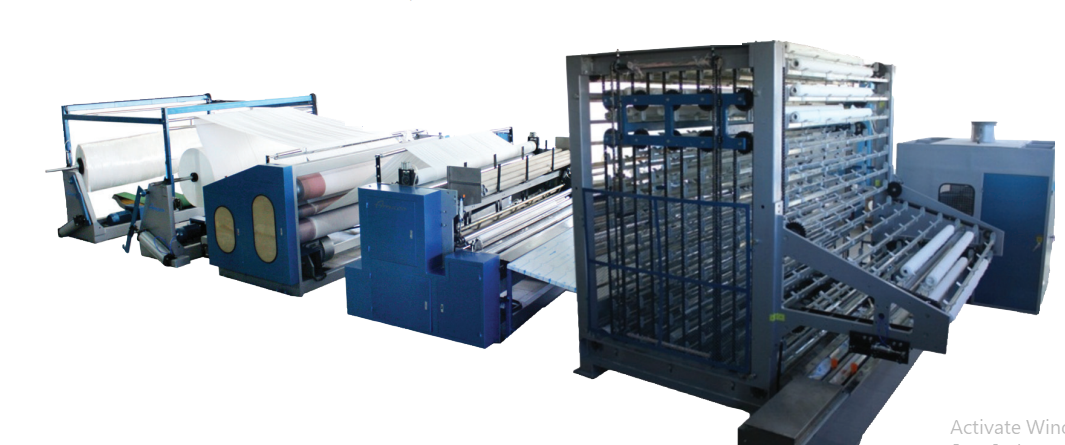

Full Automatic Toilet Paper & Kitchen Towels Line AM 215 - AM 244T - AM 270

Full Automatic Toilet Paper & Kitchen Towels Line
 AM 215 - AM 244T - AM 270





Features :

Full Automatic Toilet & Kitchen Towels Rewinding Machine P to P + Lamination AM 215 (2750 mm)

* Seperate motor and inverter with encoder system for each unit on the toilet rewinding machine

* Each unit speed can adjust from the control touch screen

* Paper photocells : web control

* Double embossing unit + Lamination unit , ( optional : deco printing unit )

* Jumbo rolls alignment system left - right by motors , can control from stand roll or from touch screen

* Machine controlled by PLC & touch screen system with faults page

* Automatic tail sealer to cut and seal the finished product with automatic transfer system to the accumulator

* Rewinding spreed from 150 to 180 m/min



Features :

Toilet Logs Accumulator AM 270

* First in , first out system

* 100 logs storage , plus the one on transit

* Automatic loading system from the tail sealer

* Automatic unloading the logs into the log saw

* Up to 30 logs loading & unloading / min

* Paper width max : 2850 mm

* Log diameter : from 95 to 140 mm

* Controlled by Mitsubishi PLC , touch screen ,

* Power 5kw , 380V , 50 Hz





Features :

Automatic Facial Log Saw AM 244T

* Double or triple log cutting

* Blade safety Cabin

* Orbital cutting system & variable speed control

* Automatic blade sharpening system & lubrication system

* Automatic blade adjustment on the cutting level

* Automatic stop in case of misplacement or over Ø of log & in case cabin door is open

* Log pusher controller by a servomotor , which provide the right cutting length ( mm) from 90 to 280 mm

* Pneumatic disk brake system for the cutting unit

* Superior timing tension rubber belts fro the driving system

* Trim removal system

* Machine controlled by Mitsubishi PLC , touch screen & servo system  ( Mitsubishi)



Technical Features :

* Paper log length : max 2750 mm ( modified upon request )

* Minimum trim cutting length : 25 mm at each end.

* Log diameter : min-95 mm / max - 140 mm

* Maximum operation speed : 130 cuts / cycles / min * 2 or 3 rolls

* Grinding wheel diameter 100 mm & circular blade diameter : 610 mm - Germany

* Automatic adjusting for the grinding stones to follow the edge of the disk

* Power supply : 380V.3 phases , 50 Hz , 24V DC control , 9KW
