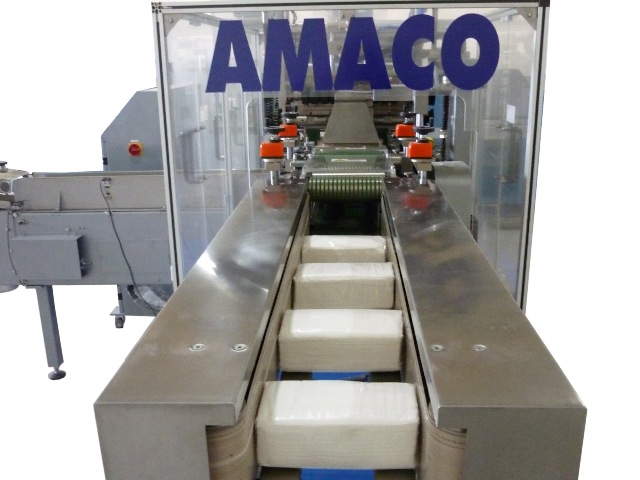

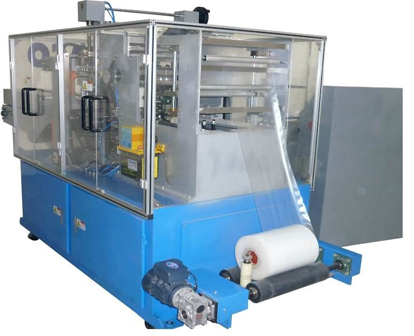

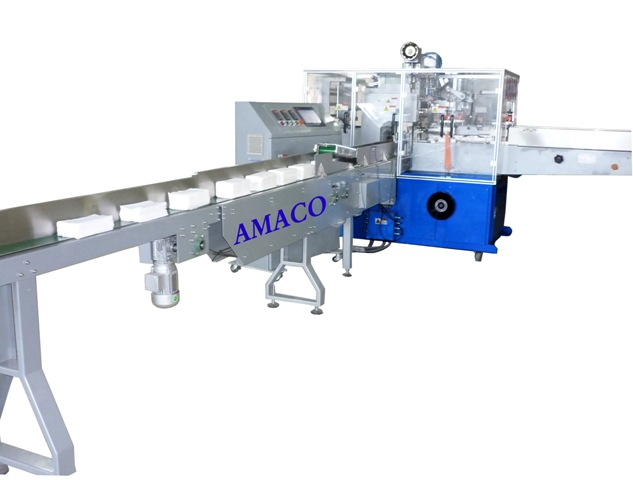

Facial Tissue Nylon Film Packing and Sealing Machine - AM 227 F





Features:

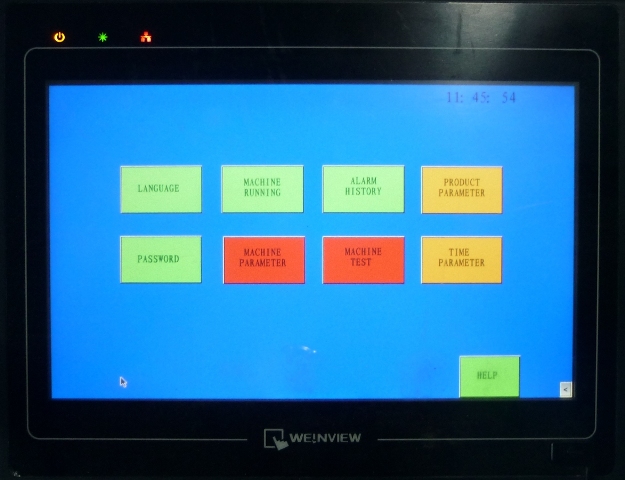

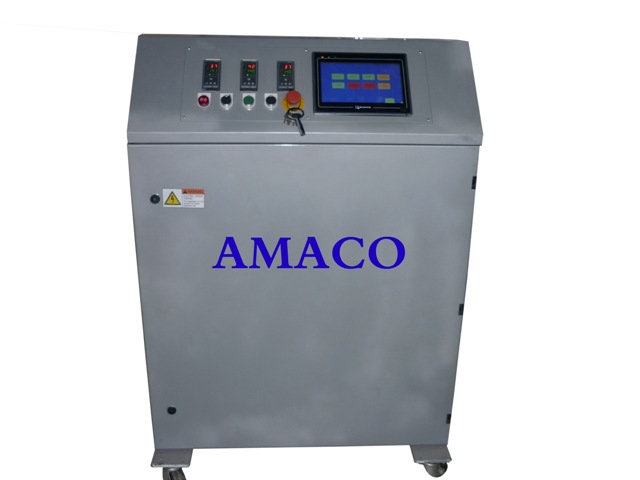

  * Siemens  PLC +  Touch screen control system or  international brand.

  * Electronic Sensors (photocell) to monitor the machine & stop it in case of any

     problems.

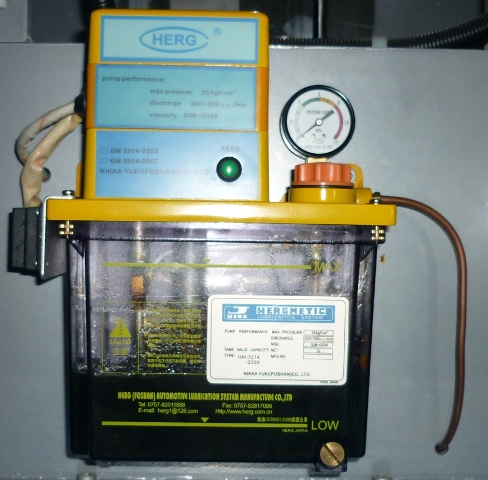

  * Automatic greasing unit for Mechanical Parts.

  * Nylon can be cut either by the printed batch or according to the required length.

  * Perforated opening unit with activating and stopping option.

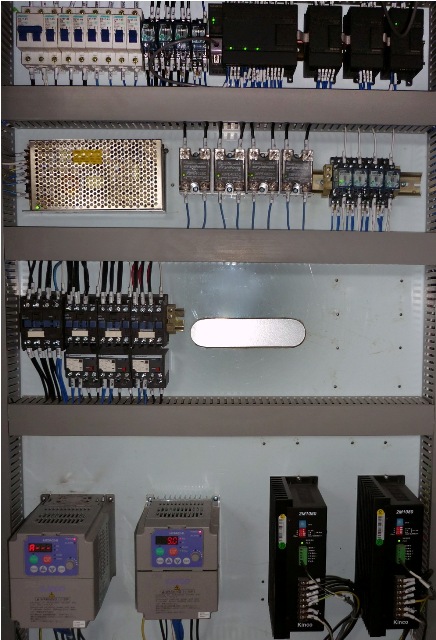

  * All electric appliances - equipment are of Siemens or International brand.





Technical Features:



  * Variable packing size:

     Length: 150 -  220 mm.  &  Width  : 100 - 120 mm.  &  Height :  50 - 100 mm.

  * Film thickness: 35 to 50 microns depending on material.

  * Mechanical Speed: max. 40 cycles / min.

  * Production Speed:  According to the pack configuration.

  * Wrapping material: CPP, CPP/PE.

  * 2 invertors: Hitachi, Japan.

  * Servo - motor: Panasonic, (nylon in-feed, mid-feed ).

  * Total Power: 9 KW.

  * Power Supply: 380 V. & 50 / 60 Hz.

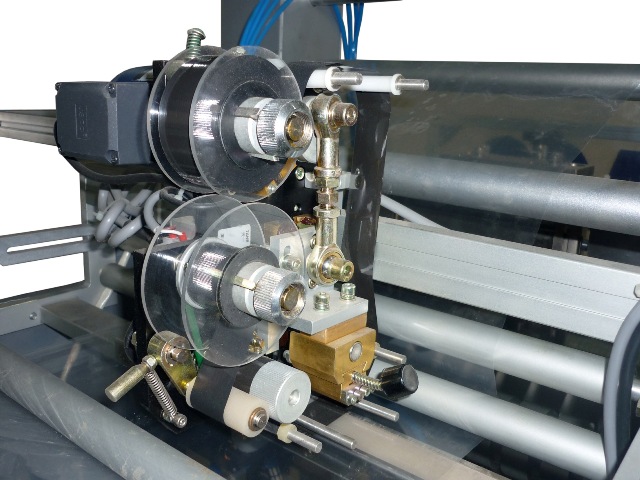

   Optional: Thermal DATA printer + Wrapping Height 130 mm.

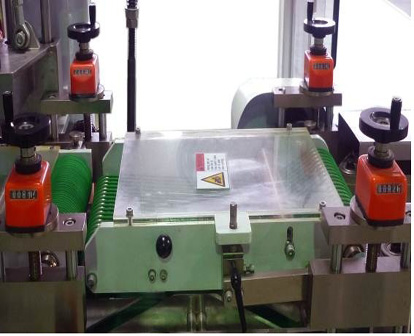

Images Gallery
