Automatic Facial Log Saw - AM 243 F





Features:



  * Single cutting.

  * Blade safety cabin.

  * Automatic blade sharpening system.

  * Automatic stop in case cabin door are open.

  * Flat Belts Transfer Conveyors.

  * Bundles in-feed controlled by Mitsubishi servo motor.

  * Conveyors controller by a Mitsubishi servomotor, which provide the right

    cutting length.

  *Variable speed control by Mitsubishi invertor.

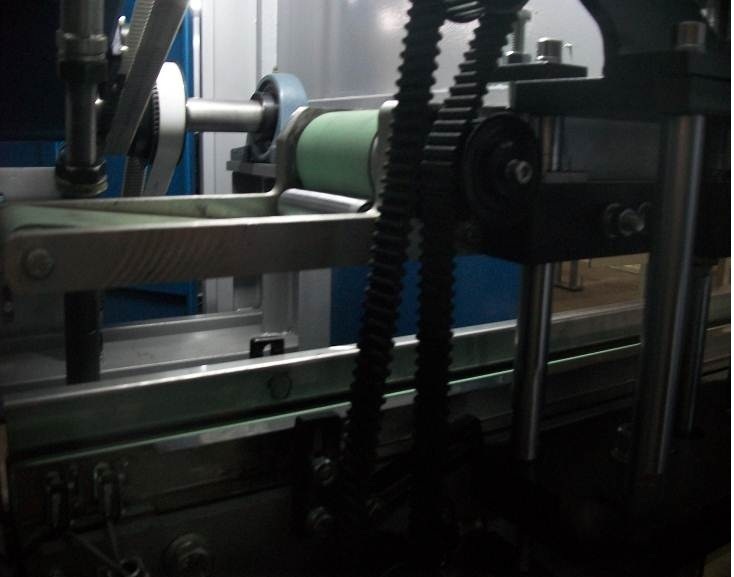

  * Superior timing tension rubber belts for  driving system.

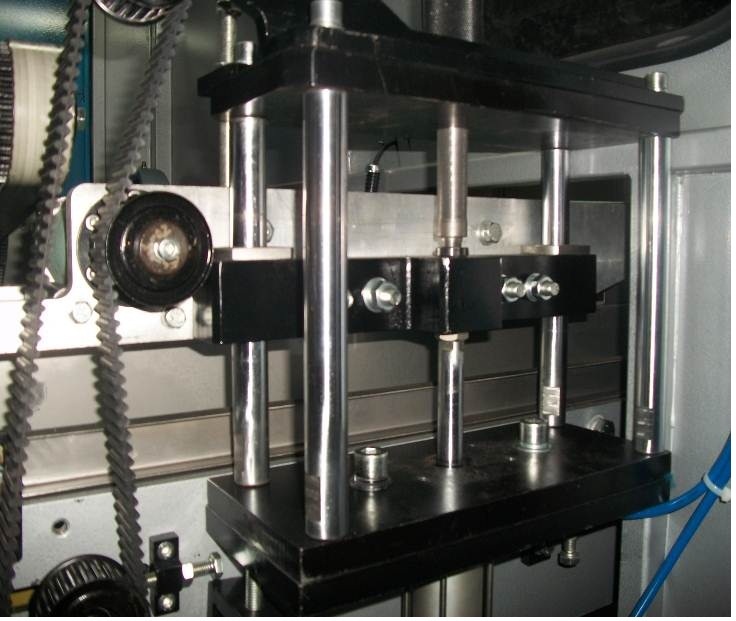

  * Conveyors press by pneumatic system.




Technical Features:



  * Paper log length: 800 - 2750 mm. (as request).

  * Electronic cutting length control: variable within 90 - 250 mm.

  * Bundle height: min. 40 mm.  &  max. 150 mm.

  * Maximum operation speed: 60 - 70 cuts / cycle / min * 1 bundle.

  * Grinding wheel: diamond, Germany IKS Klingling berg.

  * The sharpening can be adjusted to follow the edge of the disk.

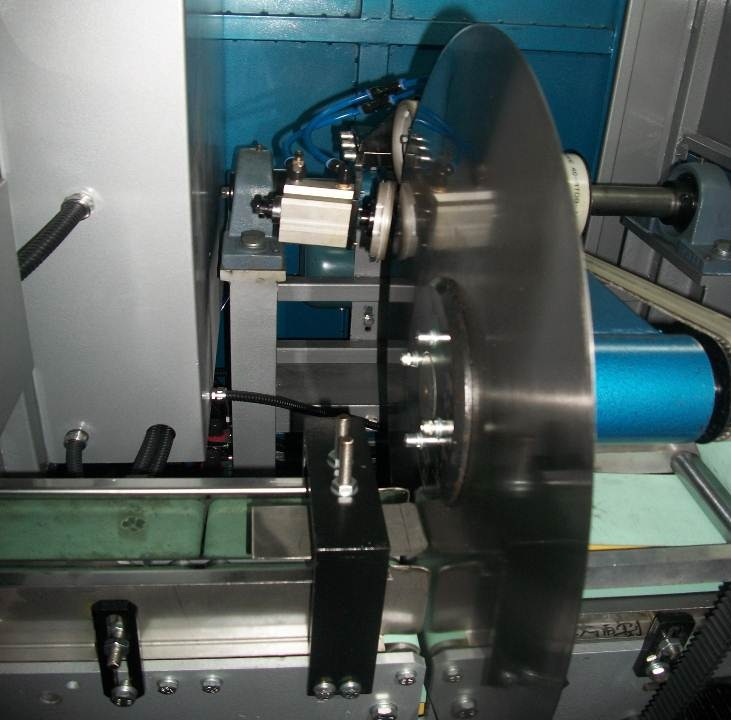

  * Circular Blade diameter: 610 mm. - Germany IKS Klingling berg.

  * Conveyors height can be adjusted mechanically.

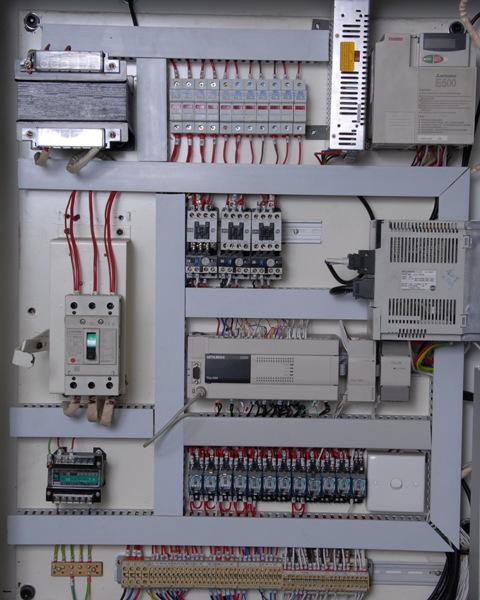

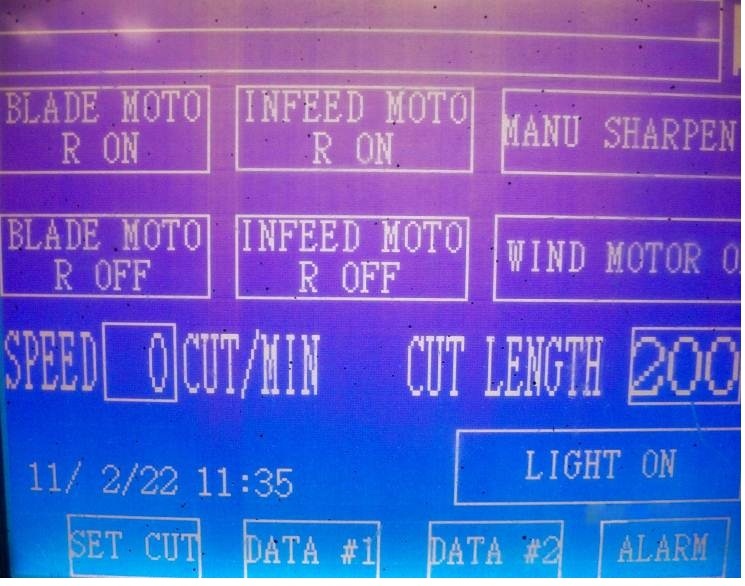

  * Mitsubishi PLC Control System - Touch Screen operation.

  * Power Supply: 380 V., 3 phases, 50 Hz, 24 V. DC control, 8 KW.

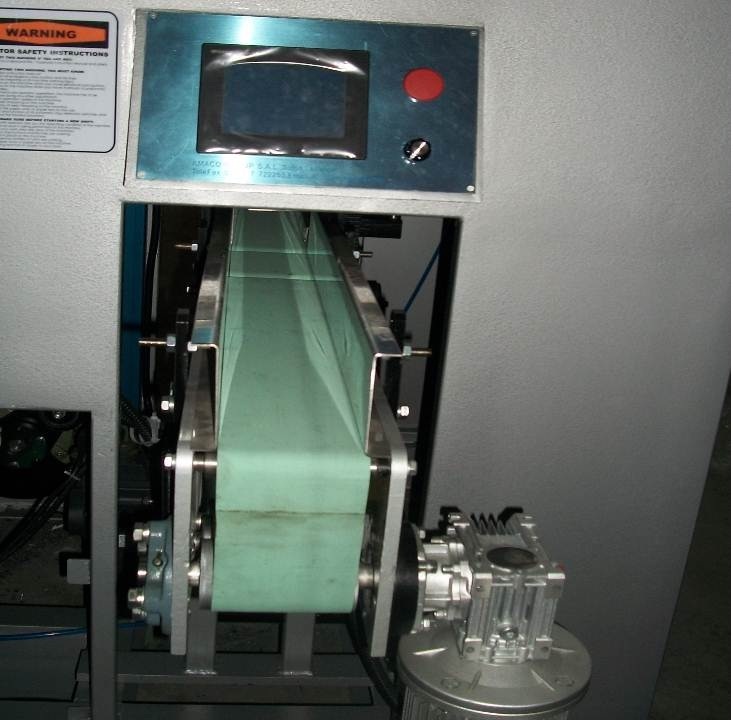

  * Product Exit: flat belts moved by redactor motor transferring the cut tissues

     out of the log saw.
