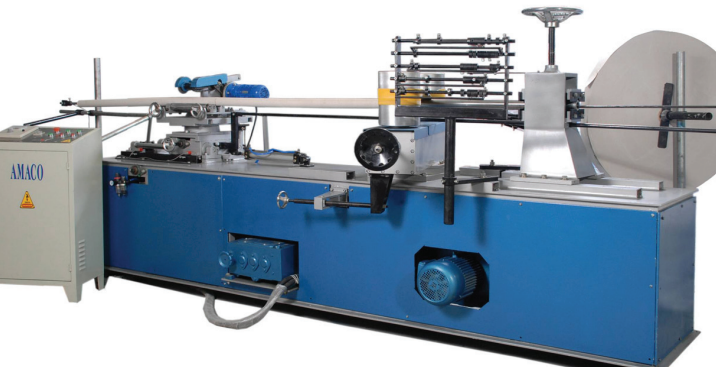

Core Maker Machine - AM 216





Features:



  * Variable Motor Speed.

  *  Maximum 4 Plies.

  * 2 or 4 layers with core inner diameter 35 - 54 mm.

  * Designed for cold adhesive use.

  * Adjustable cut off length (500 mm - 1750 mm).

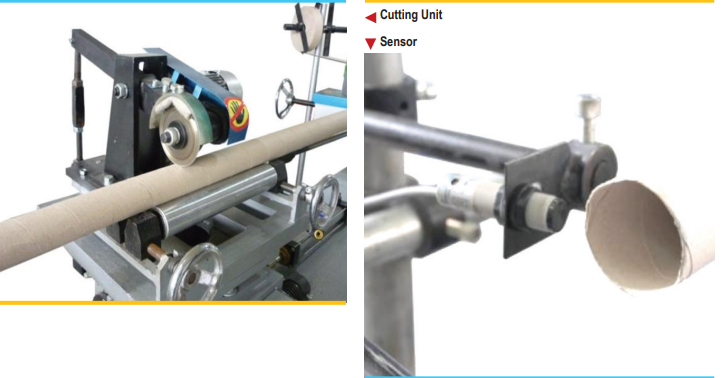

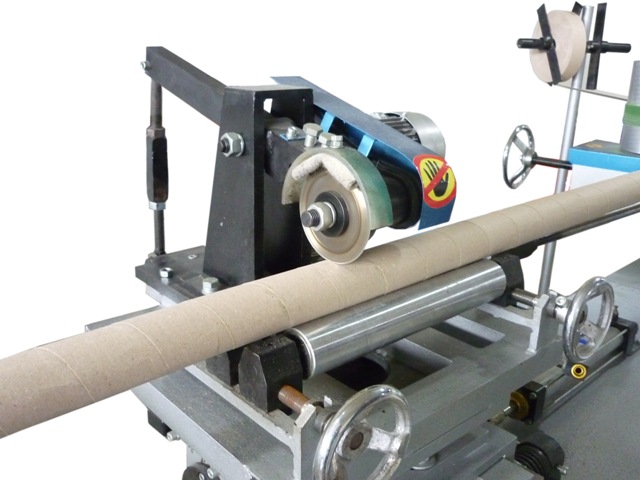

  * Rotating cutting circular blade.

  * Belt tension and angle adjusting.

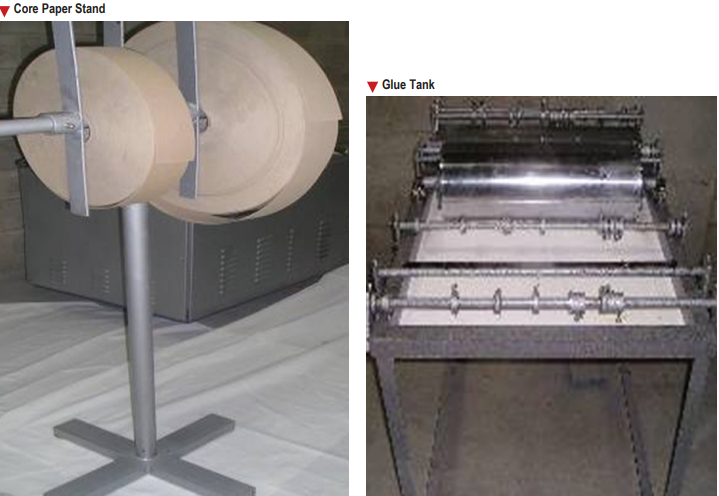

  * Glue port with double clearer.

  * Protection cover on cutting blade.

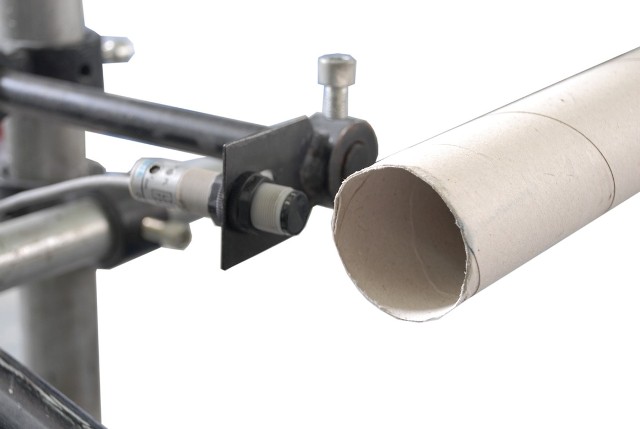

  * Cutting trigger by photocell.

  * Automatic non-stop carton cutting.







Technical Features:



  * Main motor:  3 KW electromagnetic.

  * Maximum capacity: 15 m./ min.

  * Main Part Width: 1100 mm.  &  Length: 3610 mm.  &  Height: 1600 mm.

  * Glue Port Width: 900 mm.  &  Length: 2000 mm.  &  Height: 1400 mm.

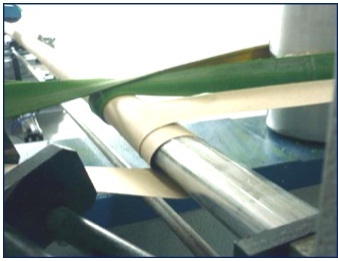

Images Gallery

Double click an image to view in real size
