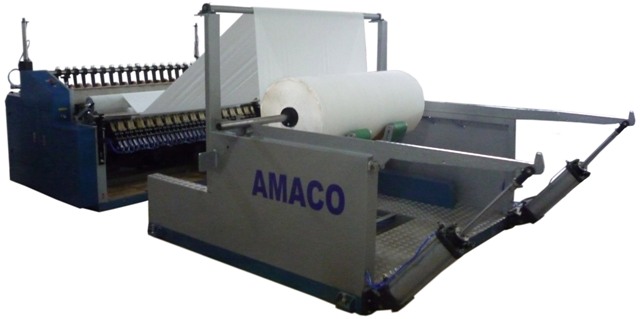

Maxi Roll Industrial Toilet & Towels Tissue Paper Machine - AM 218





Features:



  * AC motor speed control.

  * Air shaft axe (different diameters as request).

  * Electronic Sheet Counter.

  * Paper Tear Sensor.

  * Roll alignment according to the finished product (left - right).

  * Roll opening unit by double flat belts.

  * Movement transmission by timing rubber belts.

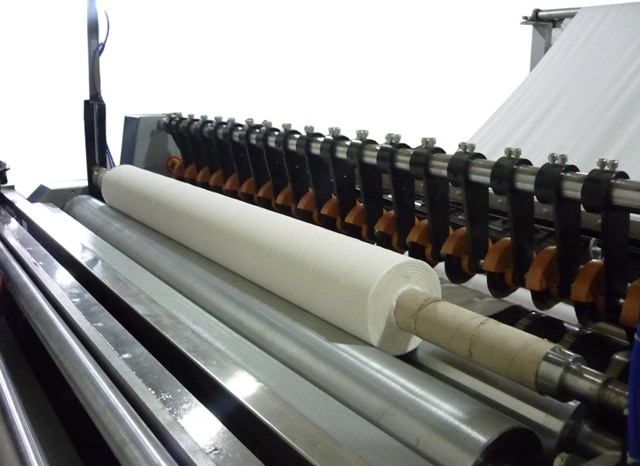

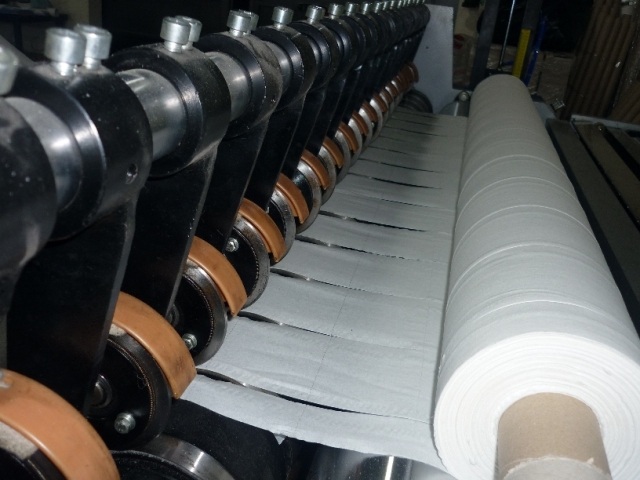

  * Slitting unit placed over the winding rolls with adjustable blades.

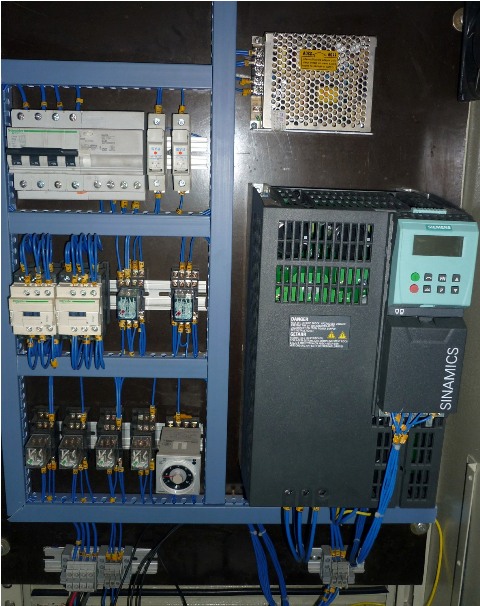

  * Electric Appliances & Invertor of Siemens or International brand.

  * Pneumatic Jumbo Roll lifting.





  Optional:

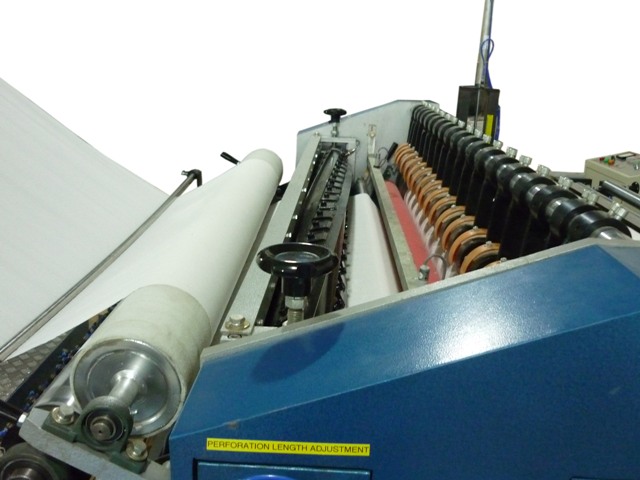

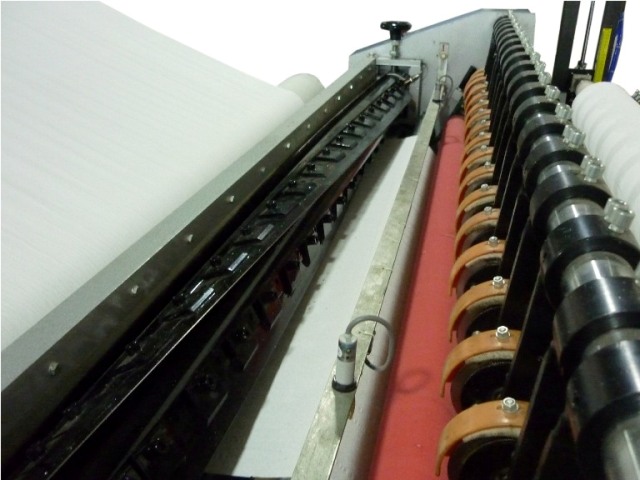

  * Perforating unit with length adjustment.

  * Calender Unit: Steel to hard rubber.





Technical Features:



  * Max. Paper Roll Width: 1320 - 2650 mm. (as request).

  * Max. Paper Roll Diameter: 1150 mm.

  * Roll core inside diameter: 3'' (76.2 mm.).

  * Maximum production speed: 120 - 150 m / min.

  * Maximum Log Diameter: 400 mm.

  * Power: 5.5 KW (or according to machine width).

  * Slitting Width: 90 - 100 mm. (movable blades).

  * Paper Basis Weight: 17 - 35 gsm.  & 1 or 2 plies.





  Optional:

  * Single embossing unit (Steel to rubber) or Double embossing unit.

  * Edge embossing unit.
