Inter-Folder Tissue Paper Machine - AM 202/204/206/208/210/213











Features:



  * Complete cutting (without notches).

  * High output level.

  * Ease of use and maintenance.

  * Economical energy consumption.

  * All electric appliances and invertors are of Siemens or international brand.

  * PLC and Invertor System are of  Siemens or as per request.

  * Variable speed drive.



  Optional:

  * Edge embossing unit.

  * Automatic web guide control system.

  * Driving motors for the jumbo rolls driving belts.

  * Automatic alignments system.

  * Two double embossing units.

  * Perfuming unit.

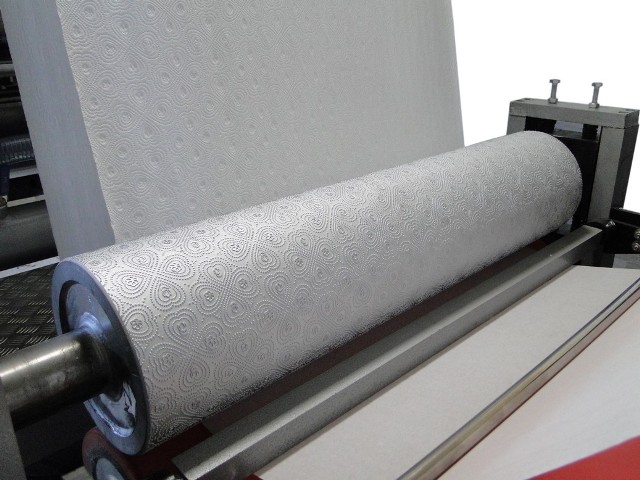

  * Full embossing unit.







The Machine is Delivered with:

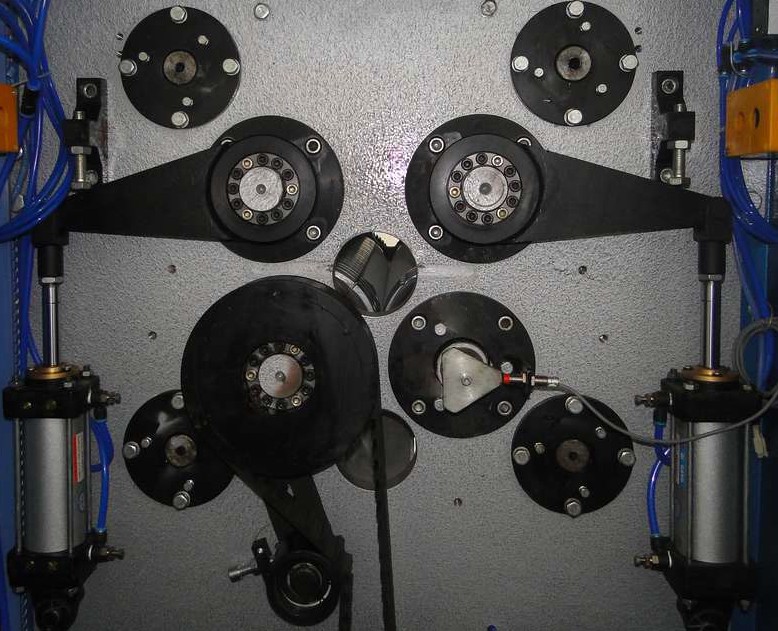

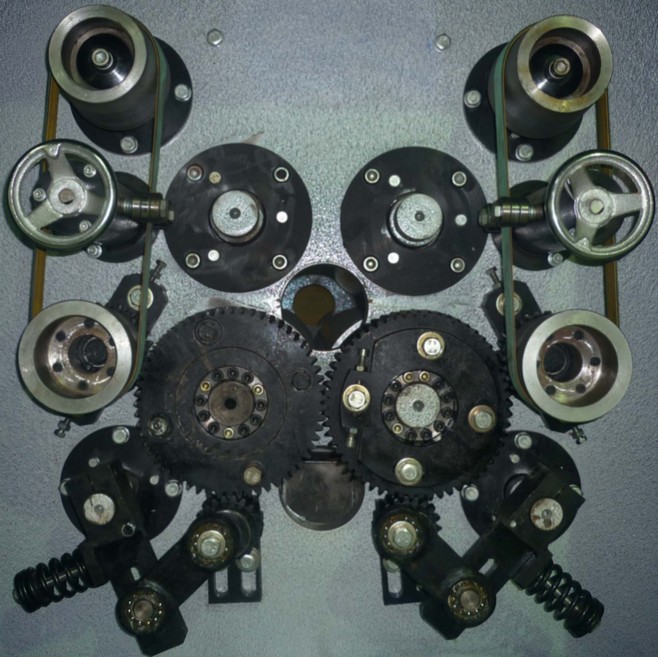

  * Movement transmission by timing tension rubber belts, not metal chain.

  * Pneumatic initialization (The metal cylinders fix paper on the rubber cylinder

     by piston pressure).

  * Jumbo rolls are driven by flat belts synchronized with the main motor.

  * Paper tear photocells - Web Control.

  * Marker counter sheet system by piston (left - right).

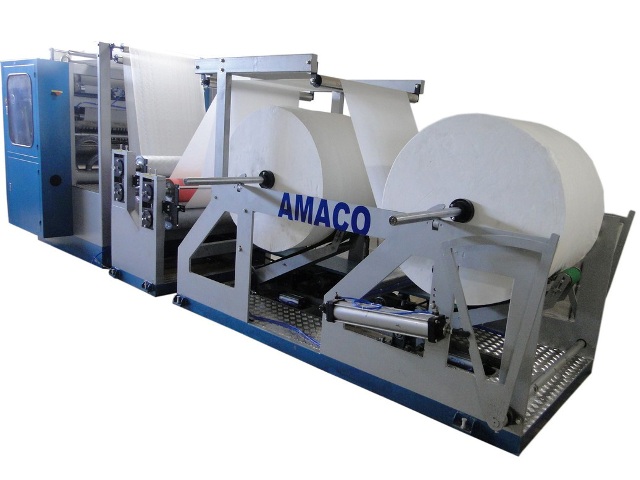

  * Unwind reel - stand for two reels.

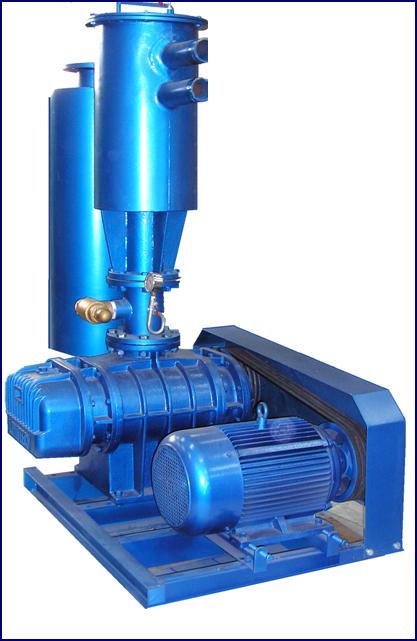

  * Vacuum pump AC.  380 V.  - (Y - Δ) launch.

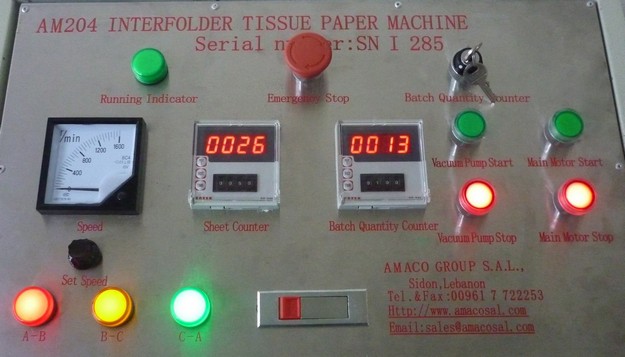

  * Electronic counter for pre-selection of sheet numbers.

  * Electronic counter for batch quantity.

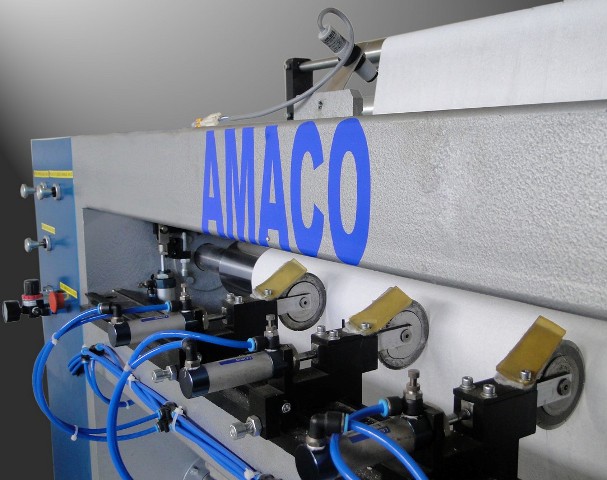

  * Pneumatic slitting system with adjustable slitting width.

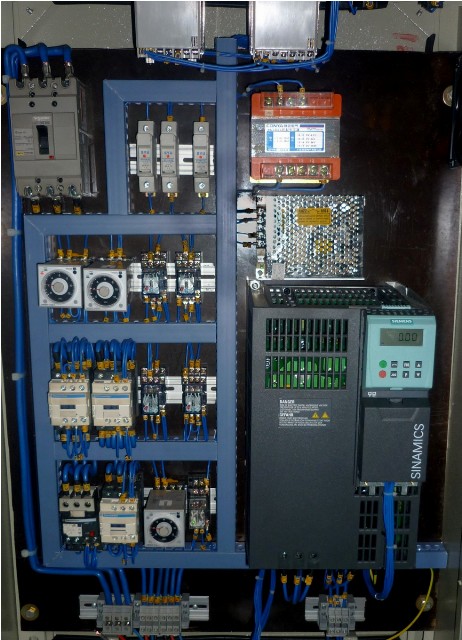

  * Complete electric equipment with safety controllers.









Model AM 202 AM 204 AM 206 AM 208 AM 210 AM 213
Folded Length One Size: Sheet Length 185 mm. 200 mm. or 210 mm.
Maximum Capacity 1500 - 1600 Sheets / min 3200 - 3400 Sheets / min 4600 - 5100 Sheets / min 6400 - 8000 Sheets / min 85200 - 9500  Sheets / min

11000 - 11500  Sheets /  min

Converting Web 1 - 2 Plies or 3 Plies Facial Tissue (as per requested)
Parent Roll Width Max 480 mm. Max 880 mm. Max 1280 mm. Max 1680 mm. Max 2050 mm. Max 2650 mm.
Parent Roll Diameter Max 1150 mm.
Core Diameter 76.2 mm. (3 inches)
Power 2.2 KW = 3 HP 4 KW =    5 HP 5.5 KW = 7 HP 7.5 KW = 10 HP 11 KW = 15 HP 15 KW =  20 HP
7.5 KW AC = 10 HP

15 KW  AC = 20 HP

22 KW  AC = 30 HP 22 KW = 30 HP 30 KW = 40 HP 40 KW =  58 HP
