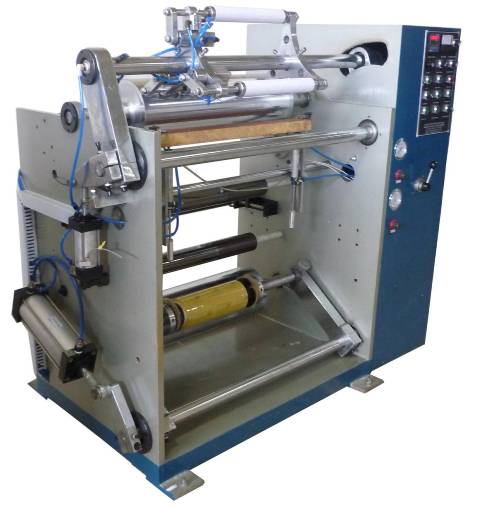

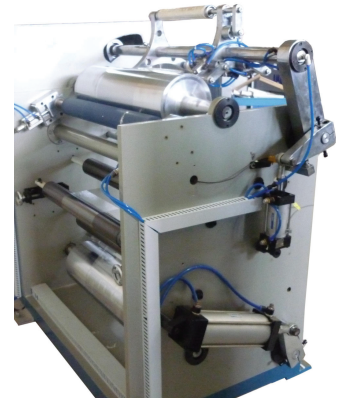

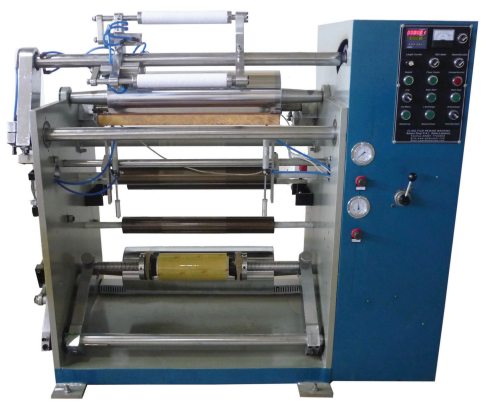

Aluminum Foil & Shrink Nylon Rewinding Machine - AM 260









Features:



  * Variable speed control.

  * Automatic slow down before stopping.

  * Electronic counter for length control.

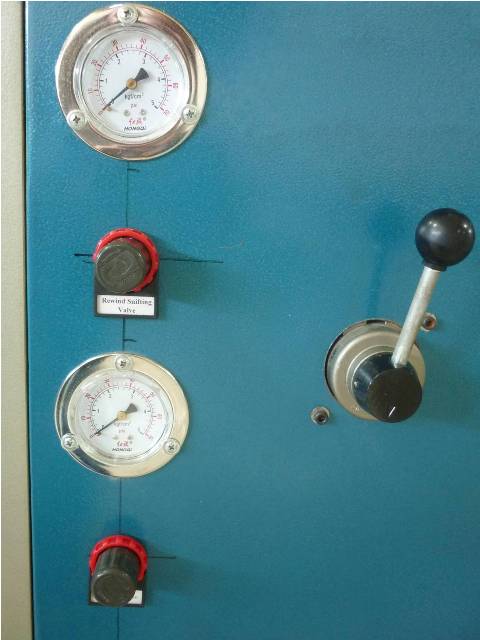

  * Pneumatic system:

   - Roll fixing.

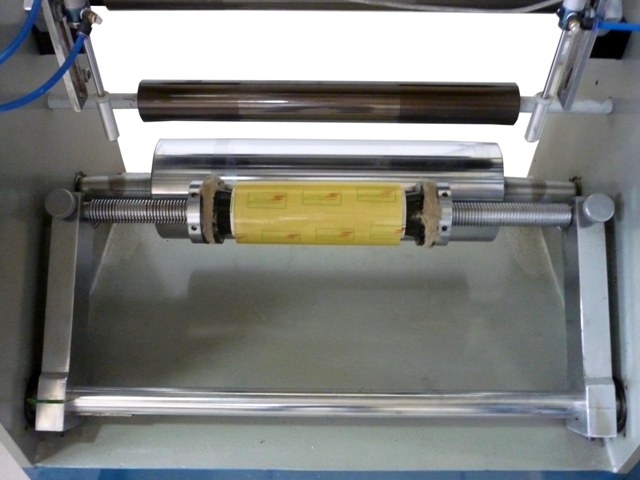

   - Rewinding arms + cores fixing.

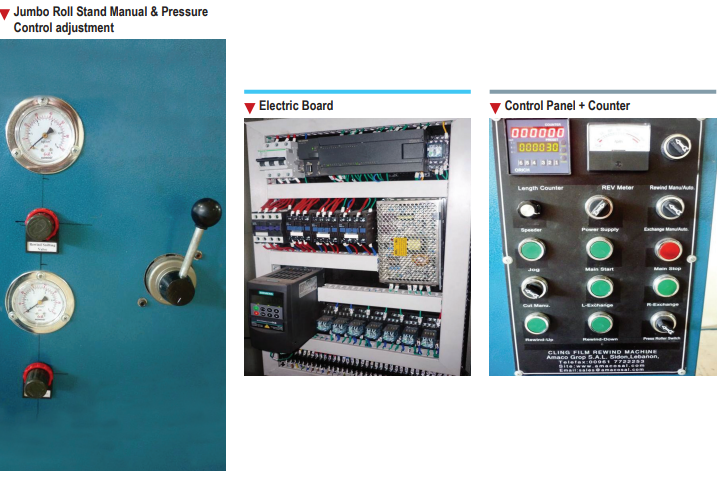

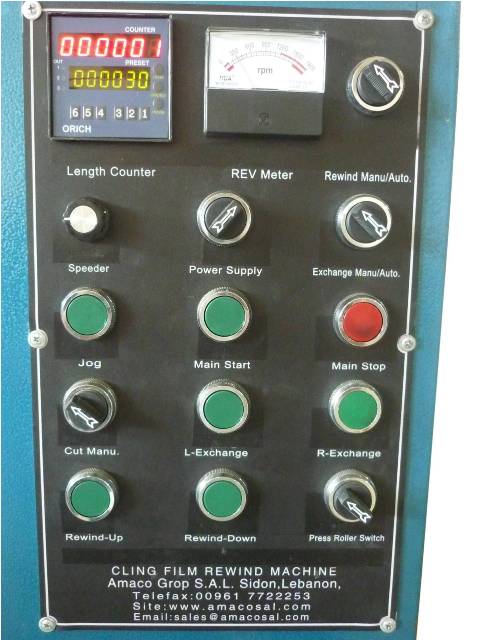

  * Operator panel for convenience of use.

  * Easy to change between different sizes.

  * Can handle Aluminum foil and cling film (stretch).

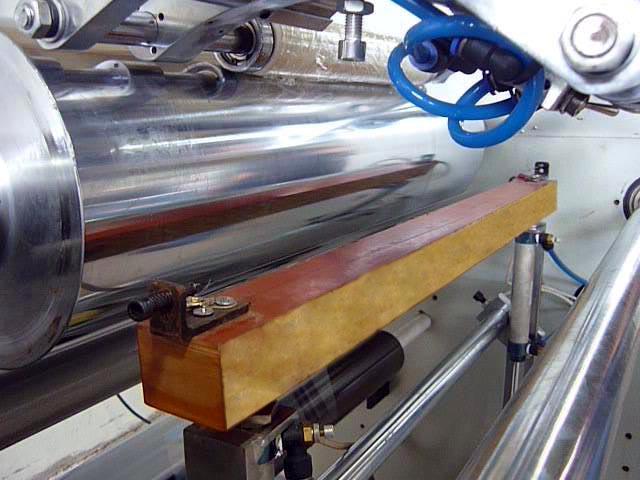

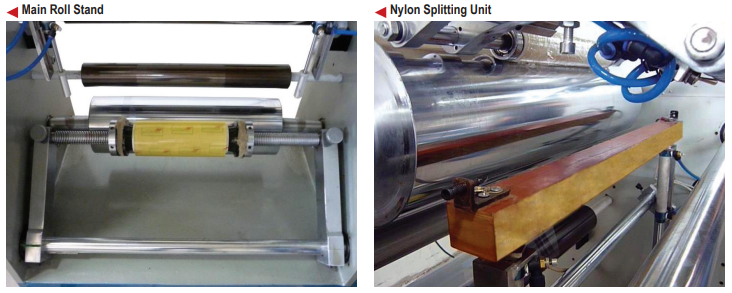

  * Automatic Film cutting after rewinding by heating system.

  * Jog running system for material pass and machine adjustment.







Technical Features:



  * Max. production speed: 125 - 150 m /min. (depending on the material used).

  * Max. Jumbo Roll width: 550 mm.

  * Max. Jumbo Roll diameter: 600 mm.

  * Jumbo Roll Inner Diameter: 76 mm. (3").

  * Rewinding core inner diameter: 40 mm. (as request).

  * Triple Production Roll Rewinding station.

  * Main motor : 1.5 KW Redactor.

  * Air pressure: Max. 6 bars.

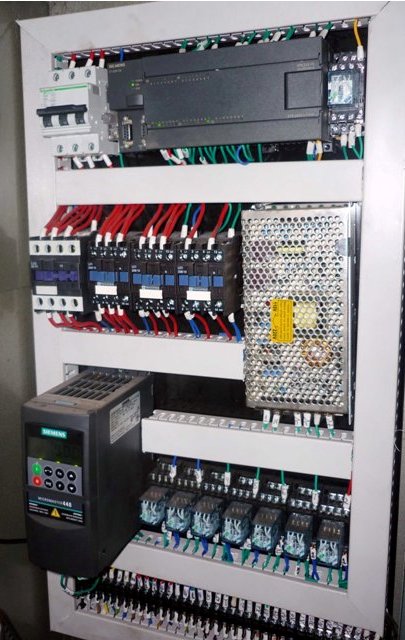

  * Machine controlled by Siemens PLC invertor.
