Full Automatic Facial Tissue Box Packaging Machine - AM 228



Features:



  * Automatic delivery & box opening.

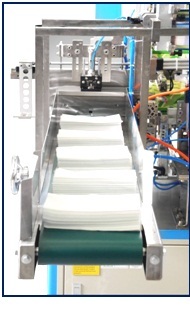

  * Automatic filling / packing the paper into the carton box.

  * Automatic gluing, sealing & closing the box.

  * Maximum operation safety.

  * Hot melt glue.

  * Variable speed drive control.

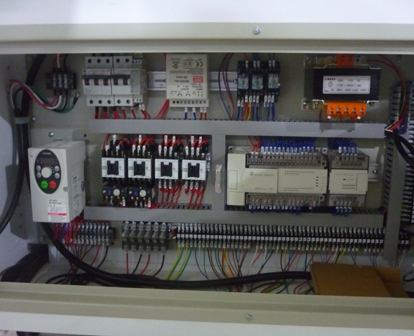

  * The machine controls by PLC & Invertor.

  * Electronic, pneumatic & mechanical system.

  * All electric equipment are from international brands.













Technical Features:



  * Processing capacity: 30 - 40 boxes / min.

  * Finished product size: Length: 200 - 250 mm.  &  Width: 110 - 125 mm.

     &  Height: 50 - 100 mm.

  * Packing material: Thickness 0.5 - 0.6 mm. (350 - 400 GSM).

  * Conveyor motor: 60 W.

  * Vacuum pump motor: 1.1 KW.

  * Heater power: 500 W x 6.

  * Power: 380 V  &  50 Hz  &  3 Phases.






Images Gallery

Double click an image to view in real size
