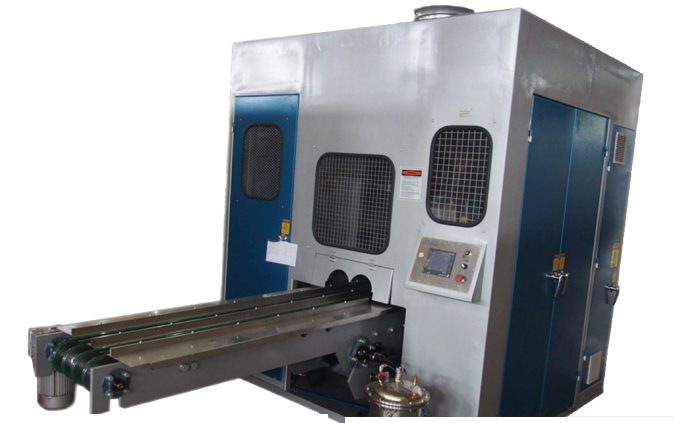

Automatic Toilet Orbital Log Saw AM 244T

Automatic Toilet Orbital Log Saw

AM 244T



Features :

  • Double or Triple log cutting

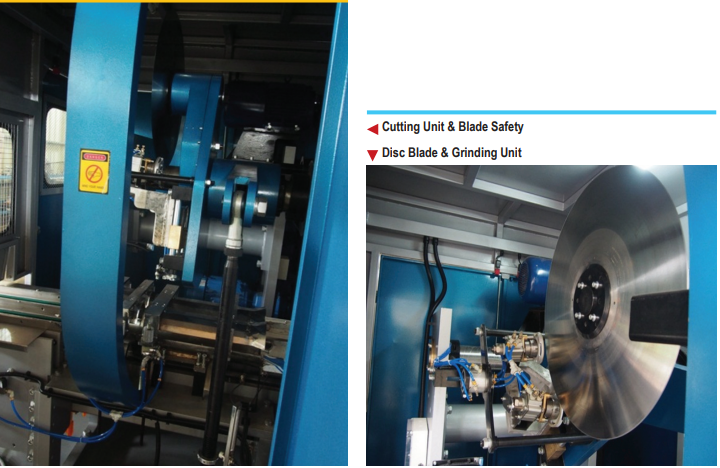

  • Blade safety Cabin
  • Orbital cutting system
  • Automatic Blade sharpening system
  • Automatic Blade lubrication system
  • Automatic blade adjustment on the cutting level
  • Automatic stop in case of misplacement or over ø of log
  • Automatic stop in case cabin door are open
  • Two or three stainless steel feed channels
  • Log in feed by servo motor
  • Log pusher controller by a servomotor , which provide the right cutting length (mm)
  • Pneumatic disk brake system for the cutting unit
  • Superior timing tension rubber belts for the driving system
  • Trim removal system



Technical Features :

  • Paper log length : max 2750 mm ( modified upon request )
  • Electronic cutting length control : variable within 90 - 300 mm
  • Minimum trim cutting length : 25 mm at each end
  • Log diameter : min . 95 mm / max 140 mm
  • Maximum operation speed : 130 cuts / cycles / min * 2 or 3 rolls
  • Grinding wheel : diamond , Germany
  • Automatic adjusting for the grinding stones to follow the edge of the disk
  • Circular blade diameter : 610 mm - Germany
  • Variable speed control
  • Clamps set before & after the disk , which fix the log very well during the cutting process
  • The clamps diameter can be adjusted mechani cally and easily
  • Mitsubishi PLC control system , Touch screen operation panel
  • Power Supply : 380V.3 phases , 50 Hz , 24V DC control , 9KW
  • Rolls output : Four round belts moved by redactor motor transferring the cut rolls out of the log saw.
