Facial Tissue Nylon Film Packing Machine - AM 227
Facial Tissue Nylon Film Packing Machine
AM 227
Features :

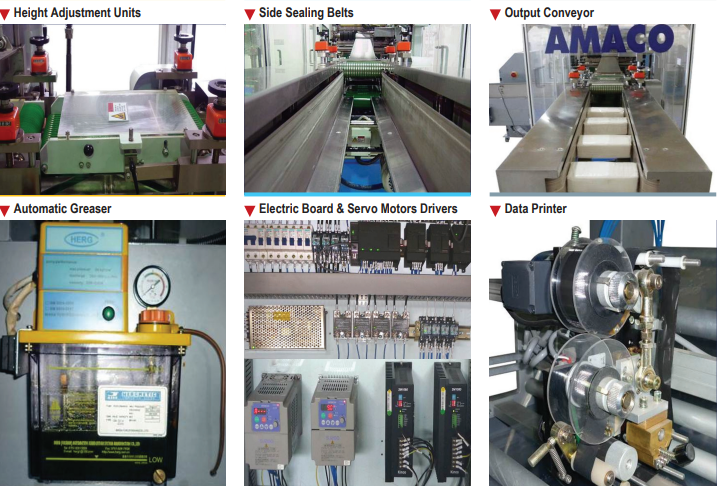

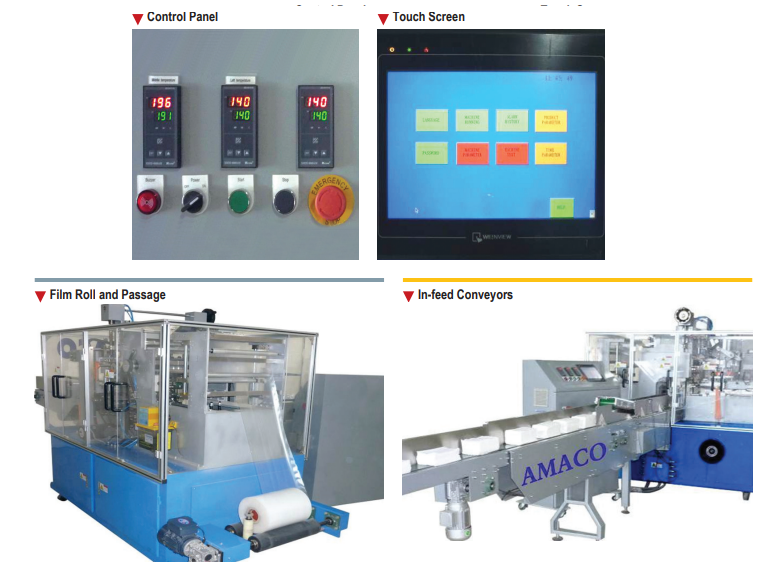

- Siemens PLC + touch screen control system or international brand
- Electronic sensors (photocell) to monitor the machine & stop it in case of problems with fault page on the touch screen.
- Automatic greasing unit for mechanical parts
- Nylon can be cut either by the printed batch or according to the required length
- Perforated opening unit with activating and stopping option
- All electric appliances-equipments of Siemens or International brand
Technical Features :
- Variable packing size: - Length: 150 - 220 mm - Width: 100 - 120 mm - Height : 50 - 100 mm
- Film thickness: 35 to 50 micron depending on material
- Mechanical speed: max. 40 cycles / min.
- Production speed: according to pack configuration
- Wrapping material: CPP , CPP/PE
- invertors: Hitachi, Japan
- Servo motors: Panasonic (nylon in-feed,mid-feed)
- Total Power: 9 KW.
- Power Supply: 380 V. – 50 / 60 Hz.
Optional: - thermal DATA printer - Wrapping height 130 mm
